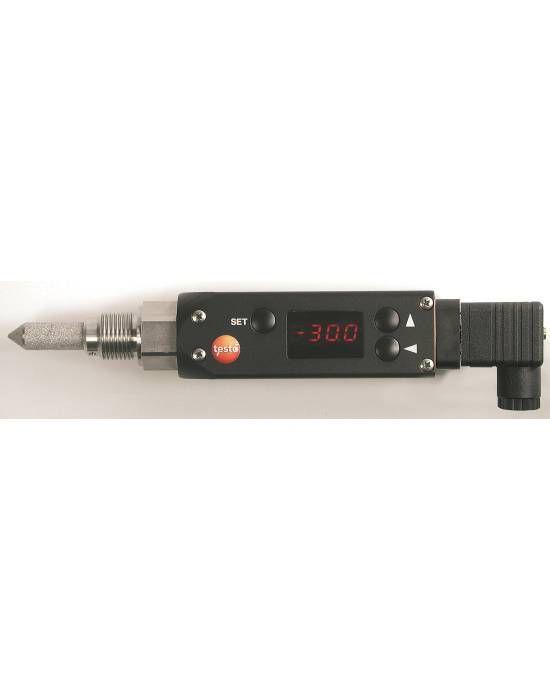

Testo 6744 - Dew Point Transmitter
Dew point transmitter with a measuring range of -45 °Ctd to + 30 °Ctd, NTP½ thread and display
Testo polymer humidity sensor with a high degree of accuracy and long-term stability
Freely scalable analog output (4 to 20 mA) and optional alarm plug with 2 integrated switching outputs
Wherever compressed air, air or gases are used in industry, excessively high humidity can cause damage or impair product quality. You can use the testo 6744 dew point transmitter to keep trace humidity in your systems in check (e.g. in membrane and adsorption dryers). Prevent damage and reduce costs through the targeted use of measuring and control technology.
Product Description
Our testo 6744 dew point transmitter was designed specifically for measuring trace humidity in compressed air or dry air. It boasts a polymer humidity sensor which features a high degree of accuracy and long-term stability.
Technical advantages offered by the testo 6744 dew point transmitter
- High accuracy: the testo 6744 dew point transmitter uses the Testo polymer sensor to measure humidity with a high degree of precision – up to ±1 K at 0 °Ctd (+32 °Ftd)
- Scalable analog output: the dew point transmitter converts the measured values into a standardized electrical signal, whereby the analog output can be scaled as required (4 to 20 mA)
- Alarm plug with 2 integrated switching outputs (optional): use the switching contact plug for MAX monitoring
- Practical format: the testo 6744 dew point transmitter features a compact and user-friendly design. For example, the housing can be rotated by 350°, enabling optimum alignment of the display
- Display with operating menu: convenient operation and on-site read-out of readings
Use the dew point transmitter to prevent damage (e.g. in refrigeration dryers or membrane dryers). This can save you a considerable amount of money, because if the quality of the end product is impaired in any way, it can prove costly. The cost of running adsorption dryers can also be reduced: accurate humidity-controlled chamber activation precisely adjusts the use of regenerated air to meet requirements – not at a preset time increment, which often creates unnecessary, excess consumption of regenerated air.
Delivery Scope
testo 6744 dew point transmitter to -45 °Ctd with polymer humidity sensor, display, process connection NTP½ thread, analog output 4 to 20 mA and optional alarm plug with 2 switching outputs.
